Tec-Control Chromatography

Biodex

Tec-Control Chromatography


Print
Enquire


For radiopharmaceutical quality control

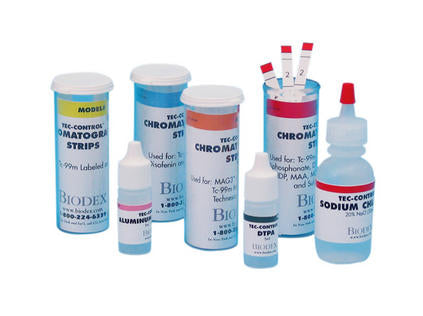

Tec-Control Chromatography tests the radiochemical purity of specific Tc-99m-labeled radiopharmaceuticals. The accompanying chart shows which strips and solvents are required to perform each individual test. Some solvents must be purchased separately (see Sigma-Aldrich chart) due to hazardous material shipping restrictions.

Detailed instruction manuals are packaged with each strip container, although our Radiopharmaceutical QC Procedure Manual (151-000) explains paper chromatography in greater detail.

RADIOPHARMACEUTICAL  SOLVENT(S) REQUIRED*  STRIPS REQUIRED

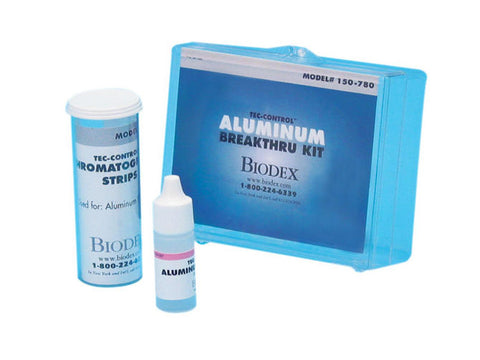

 Aluminum Breakthru  150-781 10 µg/ml  150-782
 Aluminum Breakthru  150-783 5 µg/ml  150-782
 Bicisate (Neurolite™)  Ethyl Acetate 99.%  150-130
 Diphosphonate  Acetone (HPLC Grade), Distilled H2O  150-001 & 150-005
 Disofenin (Hepatolite™)  150-160, Distilled H2O  150-122 & 150-125
 DMSA  Acetone (HPLC Grade),  150-025
 DTPA  Acetone (HPLC Grade), Distilled H2O  150-001 & 150-005
 Exametazine (Ceretec™)  Ethyl Acetate 99.%
150-130
 Fluorodeoxyglucose (FDG)
Acetone (HPLC Grade) 150-127
 Glucoheptonate  Acetone (HPLC Grade), Distilled H2O  150-001 & 150-005
 HDP; HMDP and
 Octreoscan™ HDP
Acetone (HPLC Grade), Distilled H2O  150-001 & 150-126
 MAA  Acetone (HPLC Grade),  150-001
 MAG3 (Mertiatide™)  Acetone, (HPLC Grade),
Chloroform 99.8%
Tetrahydrofuran 99+%
150-951 & 150-952
 MDP  Acetone (HPLC Grade), Distilled H2O  150-001 & 150-005
 Mebrofenin (Cholotec™)  150-160, Distilled H2O  150-122 & 150-125
 Pyrophosphate  Acetone (HPLC Grade), Distilled H2O  150-001 & 150-005
 Sestamibi (Cardiolite™ and
 Miraluma™)
Ethyl Acetate 99.%  150-991
 Sulphur Colloid  Acetone (HPLC Grade)  150-001
 Tc-99m (reduced)  Acetone (HPLC Grade),  150-001
 Tc-99m Monoclonal  Antibodies  0.9% Saline  150-771
 Tetrofosmin (Myoview™)  Ethyl Acetate 99.%
150-971
 In-111 Octreotide
 (Octreoscan™)
150-773 & 0.9% Saline  150-771 **
 In-111 Monoclonal
 Antibodies
150-773 & 0.9% Saline  150-771 **
 In-111/Y-90 Zevalin™  0.9% Saline  150-772
 I-131 Monoclonal Antibodies
 And Neutrospec™
0.9% Saline  150-771

* Note: See Sigma-Aldrich product matrix for solvents.

Chromatography Strips

Code Description
150-001 Chromatography Strips 50/pkg: RED
150-005 Chromatography Strips 50/pkg: BLACK
150-025 Chromatography Strips 50/pkg: YELLOW
150-122 Chromatography Strips 50/pkg: ORANGE
150-125 Chromatography Strips 50/pkg: LIGHT BLUE
150-126 Chromatography Strips 50/pkg: BROWN
150-127 Chromatography Strips 50/pkg: GREEN
150-130 Chromatography Strips 50/pkg: GOLD
150-771 Chromatography Strips 50/pkg: DARK GREEN
150-772 Chromatography Strips 50/pkg: BLUE
150-951 Chromatography Strips 50/pkg: LIME
150-952 Chromatography Strips 50/pkg: PEACH
150-971 Chromatography Strips 50/pkg: TEAL
150-991 Chromatography Strips 50/pkg: PINK
150-782 Chromatography Strips 50/pkg: ALUMINUM



Chromatography Solvents

Code Description
150-160 20% Sodium Chloride Solvent:  30ml
150-773 DTPA Solvent:  5ml
150-781 Standard Aluminum Solvent (10µg/ml):  5ml
150-783 Standard Aluminum Solvent (5µg/ml):  5ml
