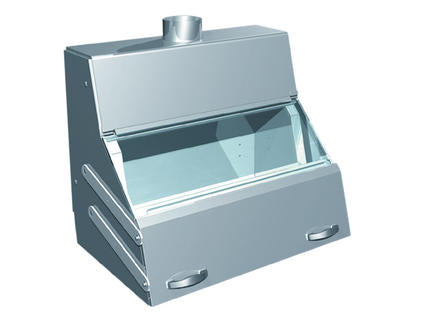

Lead-Lined Preparation Enclosure

Overview

Connects to External Ductwork

The Lead-Lined Preparation Enclosure is designed for applications that require handling gaseous radioactive materials. The interior provides ample floor space. A large lead glass window and halogen light allow safe and unobstructed viewing. The enclosure opening has an adjustable shield that creates access ports. A swing down shield covers the ports when not in use.

Gaseous materials are directed by a baffle (eliminating dead space) through a stainless steel chimney. The chimney is connected to external blowers (not supplied) and ductwork (not supplied). The blowers create a negative pressure preventing gas leaks.

Specifications

• Dimensions: 36" w x 24" depth x 30.5" h (91.4 x 61 x 77.5 cm)
  - Interior Floor Space: 31" w x 19" depth (78.7 x 48.3 cm)
• Lead Shielding: .25" thick (.64 cm)
  - Adjustable Shield: 12" w x 10" h x .5" thick (30.5 x 25.4 x 1.3 cm)
• Exhaust: 6" dia (15.2 cm) chimney, fixed upper and adjustable lower baffles. Blower and filter not included
• Lighting: 110V Halogen lamp with two 25 watt bulbs, UL listed.
• Lead Glass Window:
  - Dimensions: 34.5" w x 11.8" h x .75" thick (87.6 x 30 x 1.9 cm)
  - Density: 5.05 g/cm3
• Finish: # 3 brushed, stainless steel
• Weight: 733 lb (332 kg)
