- Complies with NEMA 2012 Standard
- Acceptance testing
- Determine the imaging systems relative sensitivity to scatter radiation
- Measure the effects of dead-time and the effects of random events generated
at different levels of activity of the line source

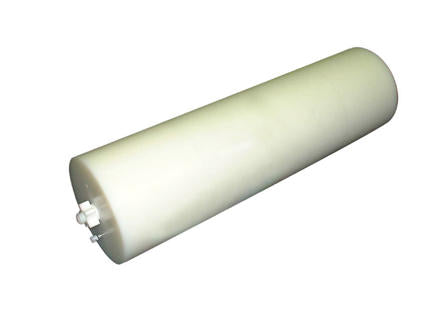

- Cylinder Outside Dimension: 20.3 cm dia x 70 cm long
- Cylinder Hole Size: 6.4 mm
- Cylinder Hole Offset: 4.5 cm
- Line Source Dimensions: 5 mm O.D. x 80 cm long
- Line Source Inside Diameter: 3.2 mm
- Shipping Weight: 52 lb (23.5 kg)
| Code | Description |
| 043-768 | PET Scatter Phantom™ - NEMA |
