Deluxe L-Block Shield

Biodex

Deluxe L-Block Shield


Print
Enquire


Ideal for PET Pharmacies

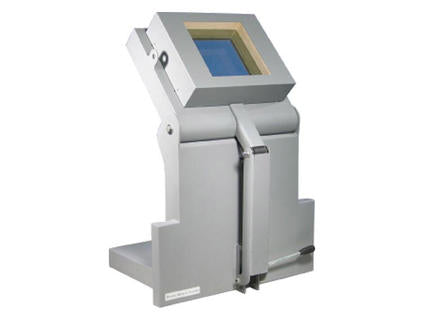

The Deluxe L-Block Shield is designed for managing large quantities of high-energy radionuclides. The shield is constructed of 2.4" thick lead encased in steel, and features a large 8" x 8" x 4" lead glass window. A convenient lever allows quick adjustment of window to optimal angle for any user and procedures. The optional 042-417 Lead Brick Cave fits neatly into the sides of the vertical section to provide lateral shielding around the full perimeter of the L-Block's base. A special plate with a hex-shaped recess is mounted on the base to facilitate one-handed loading and unloading of dose pigs incorporating hex-shaped bottoms.

  • 2.4" lead shielding in front and in base
  • 8" x 8" x 4" easily adjustable lead glass window
  • Optional Lead Brick Cave for complete lateral shielding

042-413 Deluxe L-Block Shield

  • Dimensions: 20" w x 17.88" depth x 28.75" h (50.8 x 45.4 x 73 cm)
  • Lead Shielding: 2.4" thick (6 cm)
  • Lead Glass Window:
    - Dimensions: 8" w x 8" h x 4" thick (20.3 x 20.3 x 10.2 cm)
    - Density: 5.2 g/cm3
    - Lead Equivalency: 1.6" (4.1 cm) at 662 KeV
  • Finish: Powder coat
  • Weight: 550 lb (250 kg)
  • Shipping Weight: 702 lb (318.4 kg)

042-417 Interlocking Lead Brick Cave

  • Dimensions:
    - I.D.: 15.3" w x 13.6" depth x 16" h (38.9 x 34.5 x 40.6 cm)
  • Lead Shielding: 2.4" thick (6 cm)
  • Finish: Paint
  • Weight: 611 lb (278 kg)

042-407 Steel Table

  • Dimensions: 36.75" w x 24" depth x 36" h (93.5 x 61 x 91.5 cm)
  • Shipping Weight: 195 lb (88 kg)
Code Description
042-413 Deluxe L-Block Shield
