Gaard Lock™ PET Syringe Shield

Biodex

Gaard Lock™ PET Syringe Shield


Print
Enquire



The Gaard Lock™ PET Syringe Shield reduces hand exposure from syringes containing 511 keV radionuclides FDG F-18. The barrel of the shield is constructed of .34" thick (9 mm) tungsten that attenuates FDG F-18 by 88%.

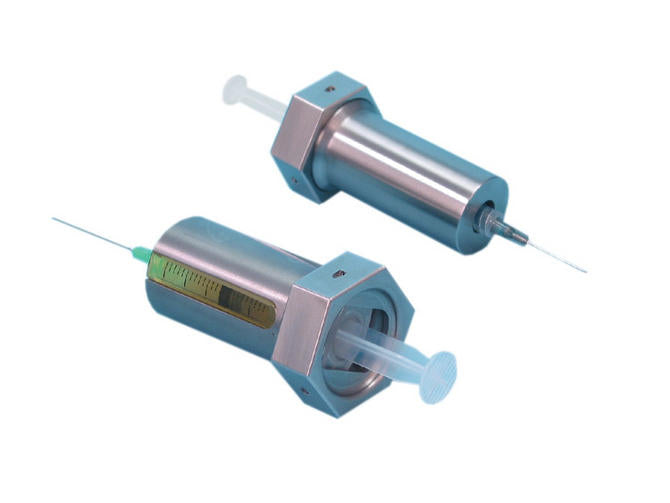

The syringe shield is offered with or without a high density (5.6) flush mounted lead glass window that provides protection and visibility. A white reflective surface on the shield interior improves viewing of the syringe's markings and fluid content.

The syringe shield features a unique flanged locking mechanism that speeds the loading and unloading of the syringe, further reducing hand exposure.

Gaard Lock PET Syringe Shields accommodate the standard sized 3 cc, 5 cc and 10 cc syringes.

  • Unique flange locking design reduces exposure with faster handling
  • Constructed of .34" thick tungsten, attenuates FDG F-18 by 88%
  • Available with or without a high density lead glass window
  • Easily sanitized with alcohol wipes

      • Shielding: .34" tungsten (9mm)
      • Lead glass: 5.6 density

      007-711 & 007-716 Gaard Lock™ Syringe Shield, 3 cc

      • Dimensions: 2.9" l (74 mm)
      • Weight: 1.7 lb (.77 kg)

      007-712 & 007-717 Gaard Lock™ Syringe Shield, 5 cc

      • Dimensions: 3" l (76 mm)
      • Weight: 2 lb (.91 kg)

      007-713 & 007-718 Gaard Lock™ Syringe Shield, 10 cc

      • Dimensions: 3.6" l (91 mm)
      • Weight: 3 lb (1.4 kg)

      Gaard Lock™ PET Syringe Shield WITH lead glass window

      Code Description
      007-716 Gaard Lock™ PET Syringe Shield WITH lead glass window - 3 cc
      007-717 Gaard Lock™ PET Syringe Shield WITH lead glass window - 5 cc
      007-718 Gaard Lock™ PET Syringe Shield WITH lead glass window - 10 cc
      007-974 Gaard Lock™ PET Syringe Shield Replacement Glass



      Gaard Lock™ PET Syringe Shield WITHOUT lead glass window

      Code Description
      007-711 Gaard Lock™ PET Syringe Shield WITHOUT lead glass window - 3 cc
      007-712 Gaard Lock™ PET Syringe Shield WITHOUT lead glass window - 5 cc
      007-713 Gaard Lock™ PET Syringe Shield WITHOUT lead glass window - 10 cc
